Gerneral Protection Circuit Breaker P.G
Short Description:

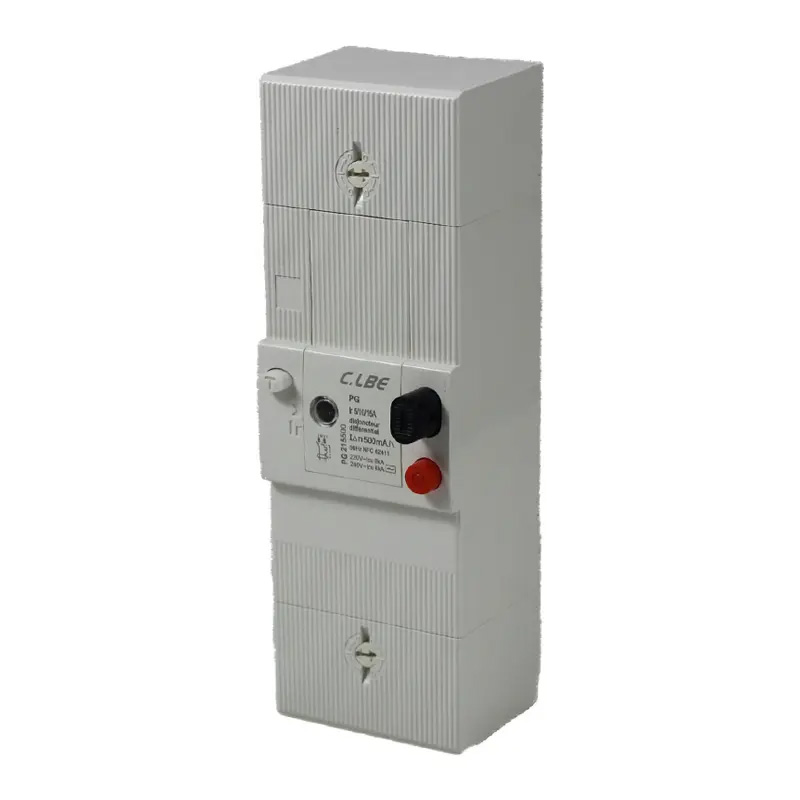

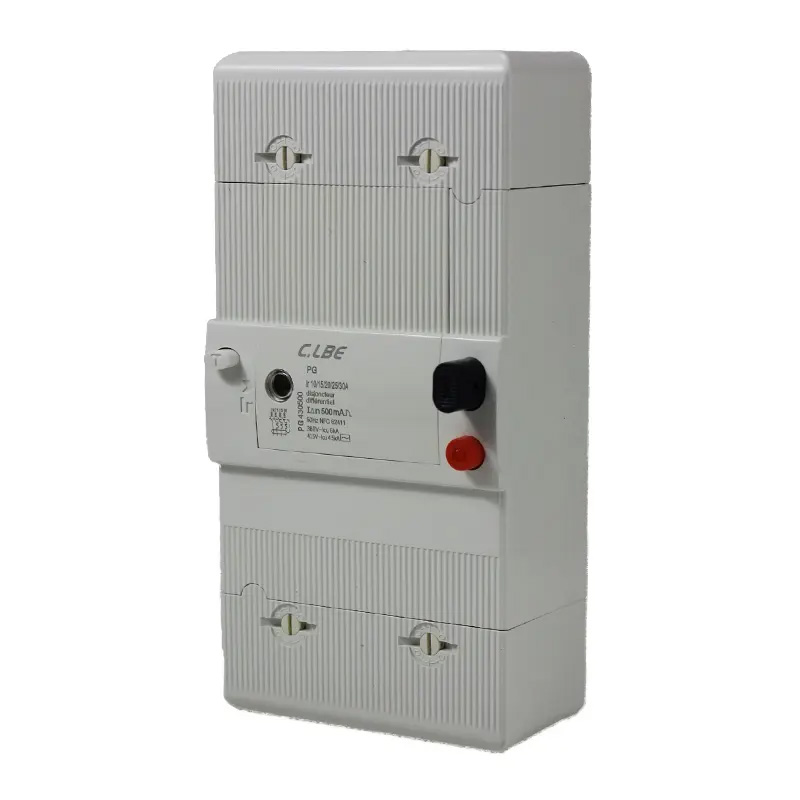

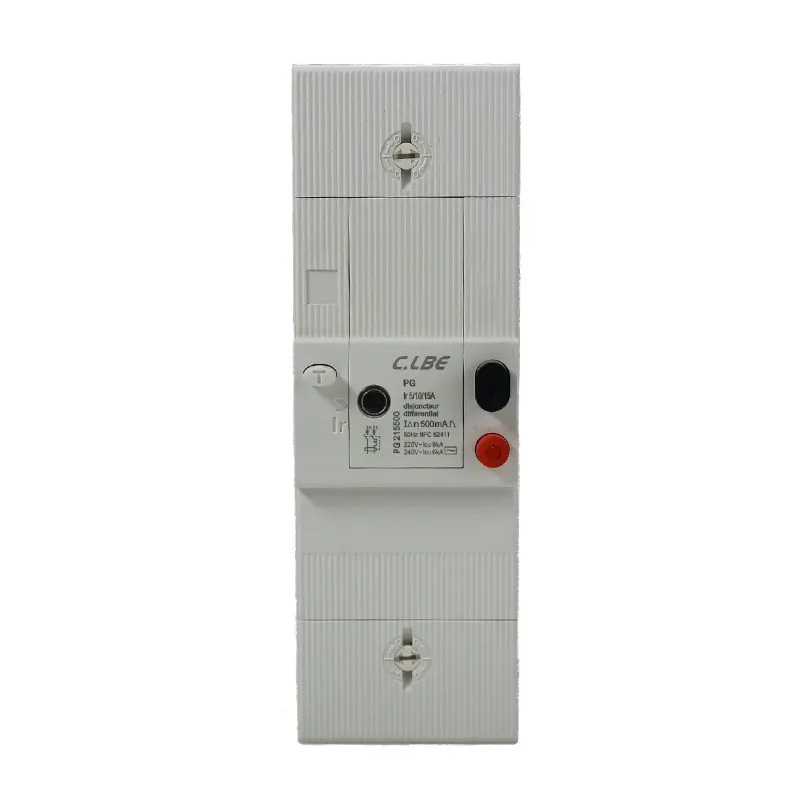

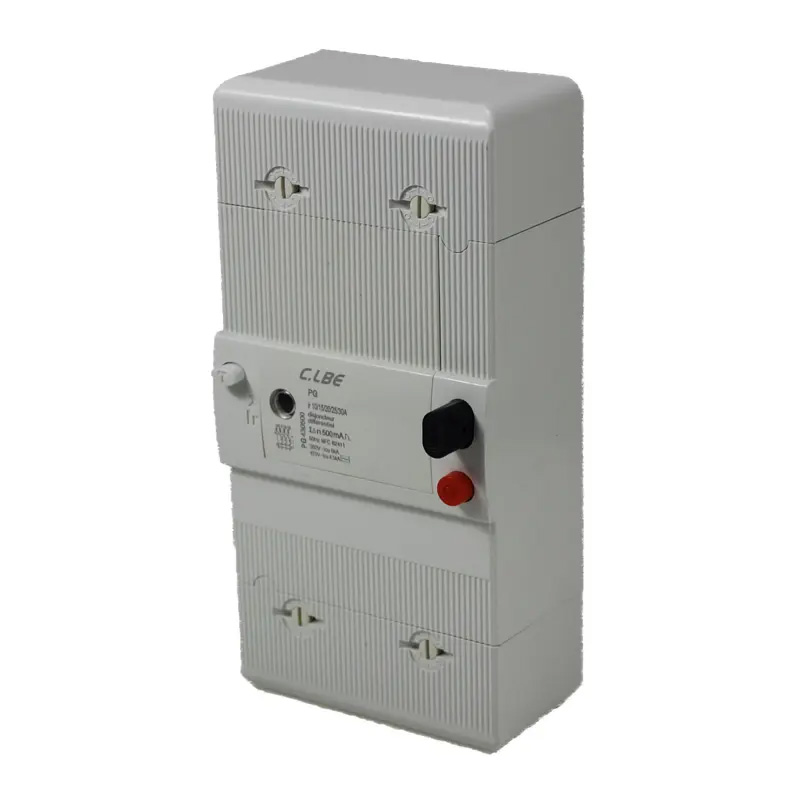

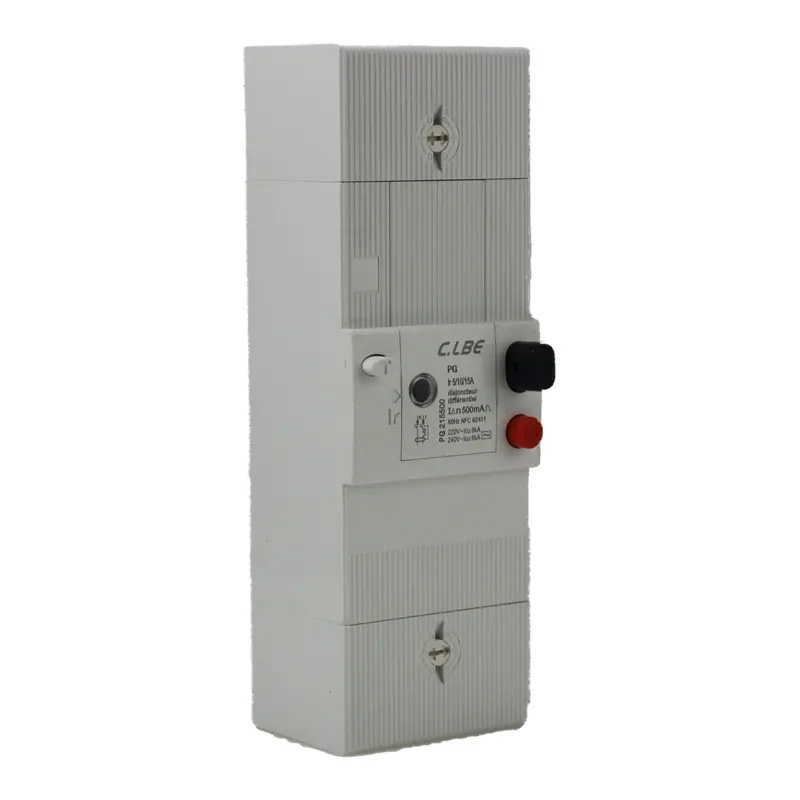

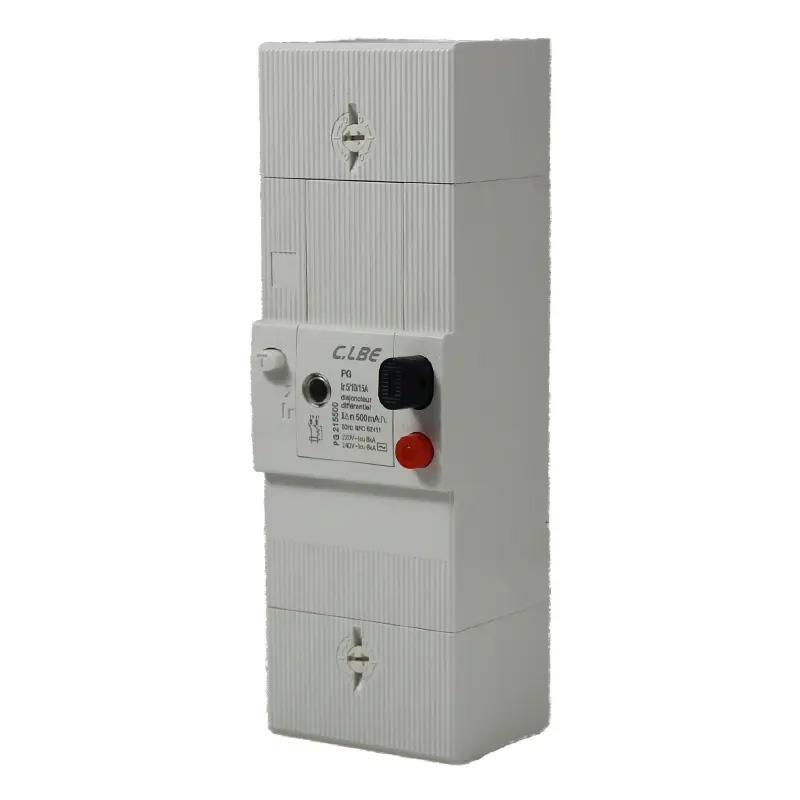

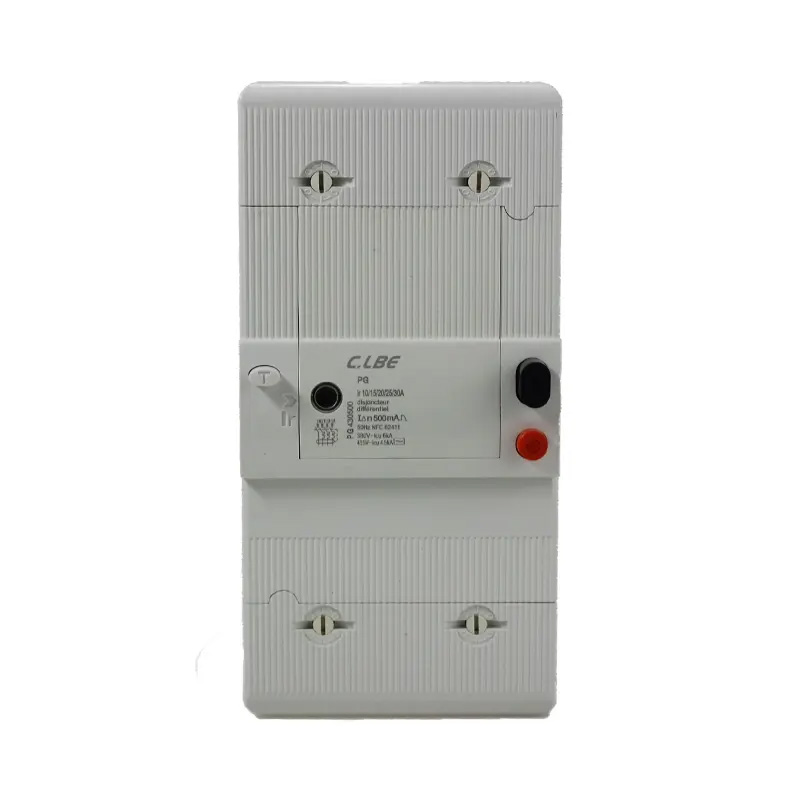

The PG circuit breaker range, from 5 to 60A, (1Ph N) or (3Ph N), with or without earth leakage protection (300mA – 500mA or 650mA), offers the right product to fit every type of installation.
Detail
Gerneral Protection circuit breaker P.G
The PG circuit breaker range, from 5 to 60A, (1Ph+N) or (3Ph+N), with or without earth leakage protection (300mA – 500mA or 650mA), offers the right product to fit every type of installation.
Operating principles
Service connections are the interface between the utility and the end used customer.
They connect the customer’s electrical installation to the power distribution network.
Advantage
Low-cost product, suitable for conventional service connections.
Multiple rating device.
Several levels of earth leakage sensitivity.
Complies with the French NFC 61 450 standard.
Protection of the consumer’s ‘installation
Technical Datasheet
size - mounting : diameter 4 screws
■ 2-pole 5 / 60 A ■ 4-pole 10 / 60 A
Selection table
| type | rated current (A) | setting current (A) | rated voltage (V) | RCD (mA) | breaking capicity(*) (kA) | size | Gardv part number |
| 2-pole 1 ph. + N | 15 | 5/10/15 | 230 | none | A | PG 215 000 | |
| 300 | PG 215 300 | ||||||
| 500 | PG 215 500 | ||||||
| 30 | 10/15/20/25/30 | 230 | none | 4.5 | A | PG 230 000 | |
| 300 | PG 230 300 | ||||||
| 500 | PG 230 500 | ||||||
| 45 | 15/30/45 | 230 | none | 4.5 | A | PG 245 000 | |
| 300 | PG 245 300 | ||||||
| 500 | PG 245 500 | ||||||
| 60 | 30/45/60 | 230 | none | 4.5 | A | PG 260 000 | |
| 300 | PG 260 300 | ||||||
| 500 | PG 260 500 | ||||||
| 4-pole 3 ph. + N | 30 | 10/15/20/25/30 | 400 | none | 4.5 | A | PG 430 000 |
| 300 | PG 430 300 | ||||||
| 500 | PG 430 500 | ||||||
| 60 | 30/45/60 | 400 | none | 4.5 | A | PG 460 000 | |
| 300 | PG460 300 | ||||||
| 500 | PG460 500 |
safety
■ thermal compensation
the pole settings are not affected by the ambient temperature.
■ residual current device
highly reliable, self-powered system
immunized against voltage surges of atmospheric origin
uninterrupted power supply for greater user convenience.
■ prevention of overvoltage
the neutral pole is designed to close first and open last to maintain a fixed potential.
electrical characteristics
■ earth leakage break time
< 0.2 s for 1IAn
< 0.1 s for 2 lAn
■ earth leakage tripping
300 mA, 500 mA or 650 mA, self-powered
■ operating temperature
- 5 ° C to + 55 ° C
■ voltage drop
1 pole + neutral < 0.9 V
■ insulation resistance
> 2 MQ
■ dielectric withstand
2 kV AC for 1 minute
4 kV between poles and frame
■ tripping curve
C type
other characteristics
■ corrosion withstand
8 days in damp chamber (CCTU4 cycle)
■ weight:
2-pole : 0.6 kg ・ 4-pole : 1.0 kg
easy operation
■ operation in all positions
■ ON/OFF control by push-button
■ rating easily changed
■ lead-sealable terminal shields
■ captive terminal screws
■ pivoting terminals
■ copper cables up to 35 mm2
■ neutral identified in blue environment
■ IP 40 protection
Prevention of overvoltage
The neutral pole is designed to close first and open last to maintain a fixed potential.
Protection against nuisance tripping
Immunized against voltage surges of atmospheric origin
Uninterrupted power supply for greater user convenience
Display of contact position
Green indicator: contact open
Red indicator: contact closed
Safety checking
The test button may be used to simulate an earth leakage fault, thereby providing a simple way to check the system.
Easy operation
operation in all positions
ON/OFF control by push-button
rating easily changed
lead-sealable terminal shields
captive terminal screws
pivoting terminals
copper cables up to 35 mm2
neutral identified in blue
Advantages:
■multiple rating device
■ temperature-compensated
■highly sensitive earth leakage protection ■complies with international standards CEE 27, EN 60898 et IEC 1009
