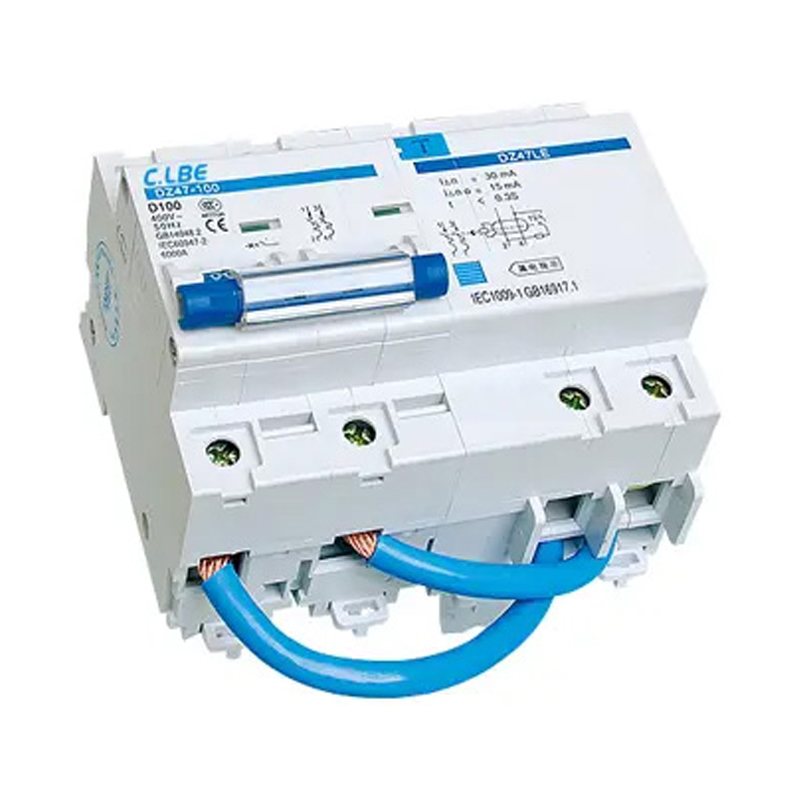

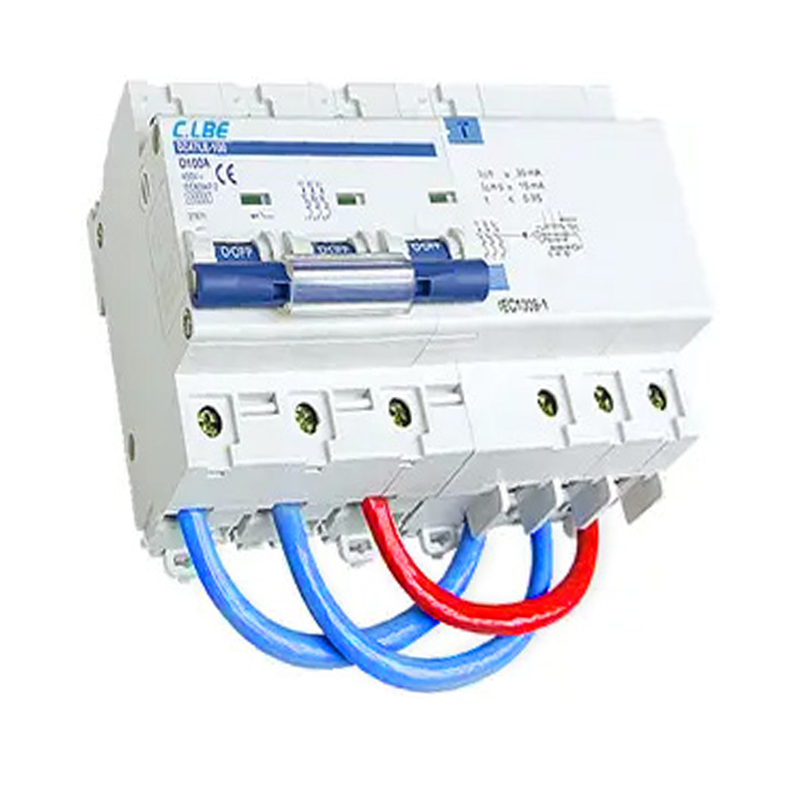

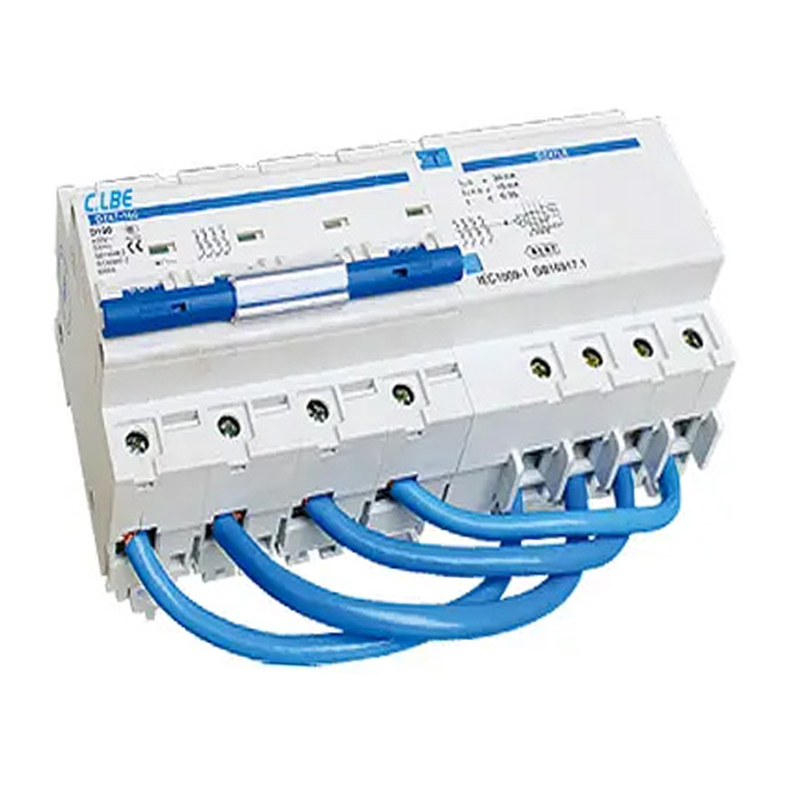

DZ47LE-125 Small Leakage Circuit Breaker
Short Description:
DZ47LE-125 is applicable to a line of AC 50Hz/60Hz, rated voltage 230V forsingle pole two-wire, 2-pole or 400V for 3-pole, 3-pole 4-wire, 4-pole andrated current up to 40A. It can protectthe line and motor from overload andshort circuit. It can also be used for infrequent line conver-sion andinfrequent motor start. It conforms with the standards of IEC60947-2.
Detail
1. Application
DZ47LE-125 is applicable to a line of AC 50Hz/60Hz, rated voltage 230V forsingle pole two-wire, 2-pole or 400V for 3-pole, 3-pole 4-wire, 4-pole andrated current up to 40A. It can protectthe line and motor from overload andshort circuit. It can also be used for infrequent line conver-sion andinfrequent motor start. It conforms with the standards of IEC60947-2.
2. Main TechnicalParameter
| Type | DZ47LE-125 | |
| Pole | 1P+N, 2P | 3P, 3P+N, 4P |
| Rated current (A) | 63,80,100,125 | |
| Rated voltage(V) | 230 | 400 |
| Rated short circuit breaking capacity Icn(KA) | 6 | |
| Rated residual making/breaking capacity I△m(A) | 2000 | |
| Rated residual action current I△n(A) | 0.03,0.1,0.3 | |
| Rated residual non-action current I△no(A) | 0.5I△n | |
| Over voltage protection grade | 280V±5% | |
3. Applicableconducting wire
| Rated current(A) | 63 | 80 | 100 |
| Nominal cross section of wire mm2 | 16 | 25 | 35 |
4. Residual currentbreaking time
| In(A) | I△n(A) | Breaking time(s) when equals to rating following | ||||
| I△n | 2I△n | 5I△n | 5,10,20,50,100,200,500a(A) | I△tb | ||
| 6-63 | 0.03, 0.05, 0.1, 0.3 | 0.1 | 0.06 | 0.04 | 0.04 | 0.04 |
5. The over-currentprotection property
| Ambient Temperature | Initial Status | Test Current | Expected Result | Expected Result | NOte |
| 40±2oC | Cold position | 1.05In(In≤63A) | t≤1h | Non-release | - |
| Cold position | 1.05In (In[63A) | t≤2h | Non-release | - | |
| Carried out immedi-ately after previous test | 1.30In(In≤63A) | t < 1h | Release | Current smoothlyrises to specified value within 5s | |
| 1.30In (In>63A) | t< 2h | Release | |||
| -5~+40oC | Cold position | 8.00In | t≤0.2s | Non-release | - |
| Cold position | 12.00In | t < 0.2s | Non-release | - |

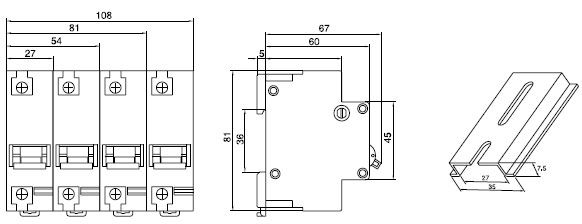

6. Dimension
