DC Electric Vehicle Charging Pile
Short Description:
Cold-rolled steel electrostatic spraying, the shell is sturdy, pressure-resistant, and impact-resistant. It supports card swiping and code scanning for charging. The touch screen is more suitable for user operation of site building and operation, indoor and outdoor parking lots.The best choice for shopping malls. The charging gun is stylish and ergonomic, with a waterproof level of IP54, suitable for outdoor installation.
Detail
Product Introduction
Cold-rolled steel + electrostatic spraying, the shell is sturdy, pressure-resistant, and impact-resistant. It supports card swiping and code scanning for charging. The touch screen is more suitable for user operation of site building and operation, indoor and outdoor parking lots.The best choice for shopping malls. The charging gun is stylish and ergonomic, with a waterproof level of IP54, suitable for outdoor installation.
Model number：CLBDCEV-20、CLBDCEV-30、CLBDCEV-40、CLBDCEV-60
Rated power：20kw、30kw、40kw、60kw
Rated current：1-120A
Input voltage：380V
Output voltage：750~1000V
Class of protection：IP54
Operating temperature：-20°C~+50°C
Working altitude：<2000m
Nstallation mode：Floor mounting
Output port：Single and double gun
Product Benefits
Beautiful and practical
Superb and concise design, supports card identification with screen display (optional)
Stablize
He protection level of the machine body reaches the IP54 industry standard, and it can be used normally outdoors without fear of rain and dust
Dependable
The product is suitable for the harsh environment of the board end. The high-strength engineering plastic is suitable for ice and snow or scorching heat. The core adopts industrial-grade components, which is durable and has a long life.
Energy saving
The power of the special machine is small, and the energy saving efficiency is more than 2 times higher than the same level products on the market.
Product Parameters
| Detailed specifications | Product model | CLBDCEV-60/80/120/160/180 |
| Usage scenarios | Home/Private/Commercial | |
| Appearance structure | Optional accessories | 680*1486*357mm |
| Installation method | Floor mounted | |
| Cabling method | Lower incoming line/lower outgoing line | |
| Cable length | 5mStandard configuration(3.5m-10mOptional/customizable) | |
| Electrical indicators | Input voltage | AC380V+20% |
| Input frequency | 50±3Hz | |
| Rated power | 60/80/120/160kW | |
| Measuring accuracy | Level 1 | |
| Output voltage | 1000V | |
| Output current | 1-250A | |
| Functional design | Product features | Scan code, swipe card, emergency stop button,LED indicator light, LCD display (optional) |
| Security design | Safety standards | China Standard GB/T |
| Protection design | Overvoltage protection, undervoltage protection, short circuit protection, overload protection, grounding protection, overtemperature protection, low temperature protection, lightning protection, leakage protection | |
| Environmental indicators | Applicable environment | Indoor/Outdoor |
| Operating temperature | -20°℃~±50°C | |
| Operating altitude | <2000m | |
| Communicat -ion interface | Support 4G, APP, and mini-programs | |
| Protection grade | Ip54 | |
| Cooling method | Natural air cooling | |
| MTBF | 100，000小时 | |
| Special protection | UV protection design | |
| Optional accessories | Install components | National standard DC hanging gun charging stack （National/European/American standard gun head） |

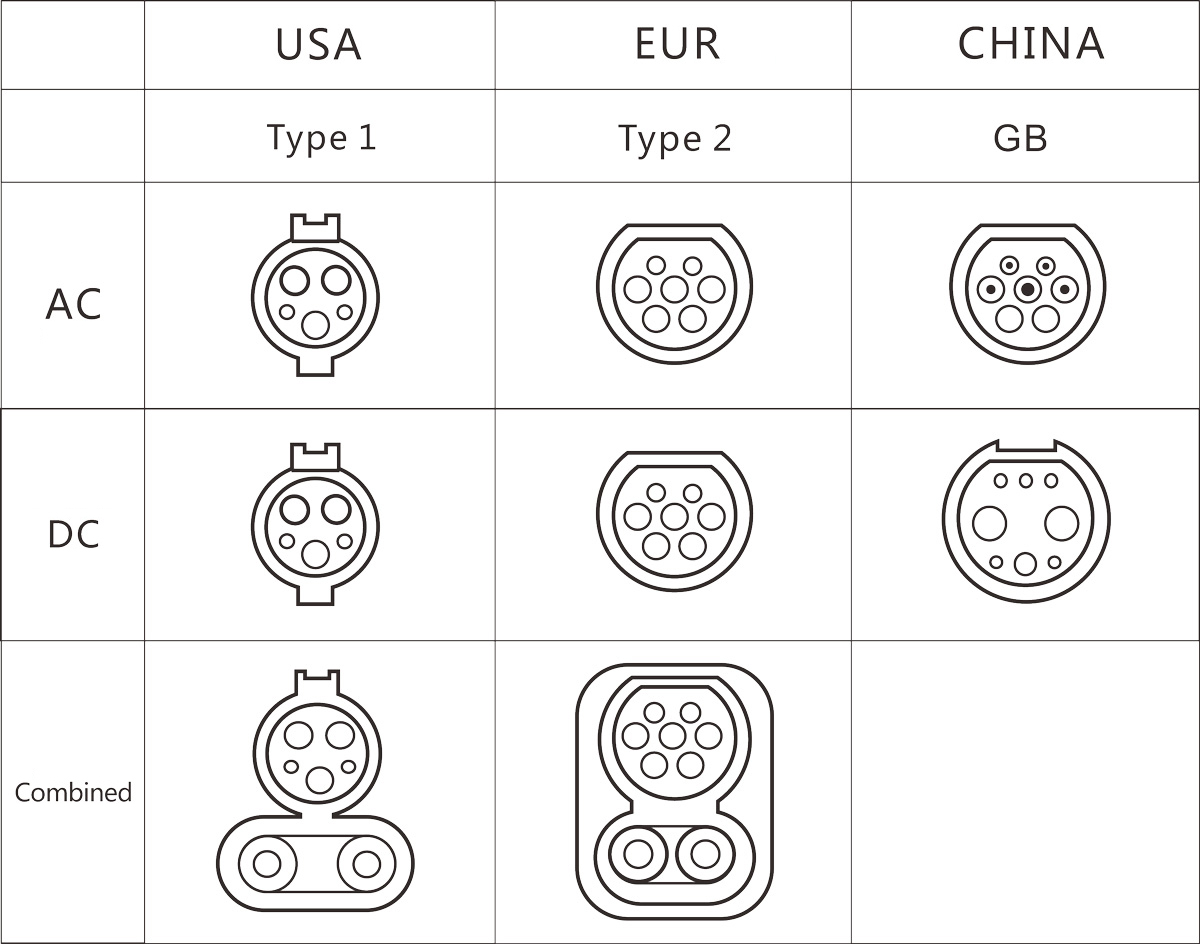

Vehicle Charging Gun

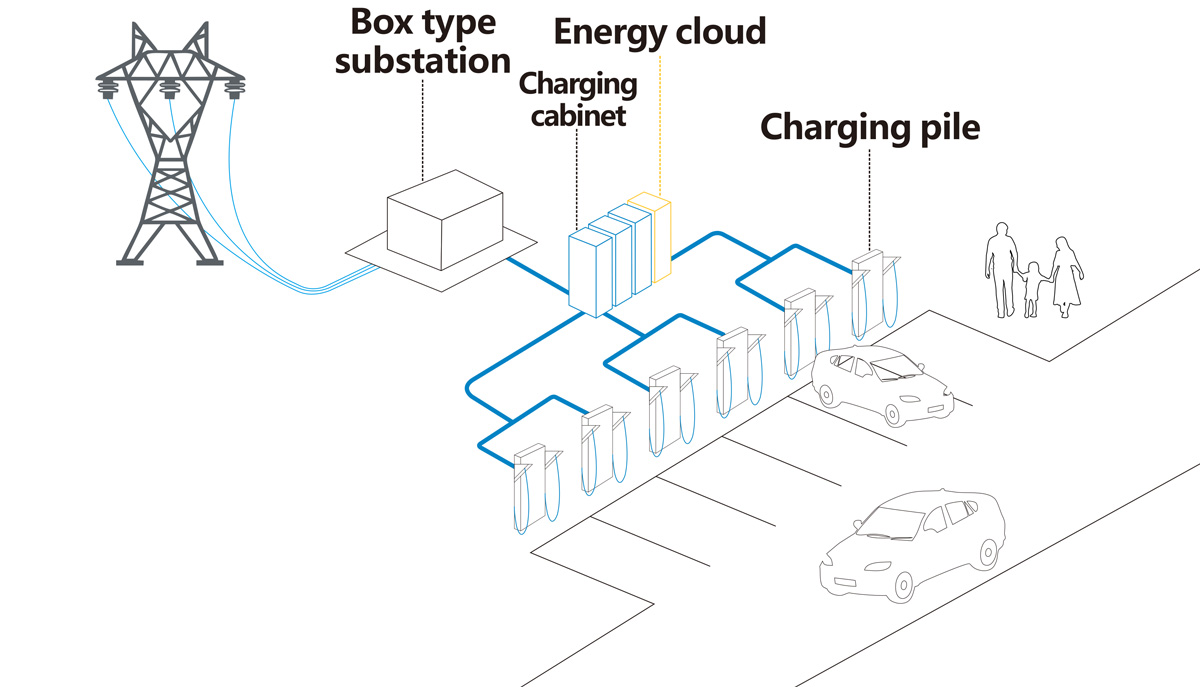

Use the Scene Graph
