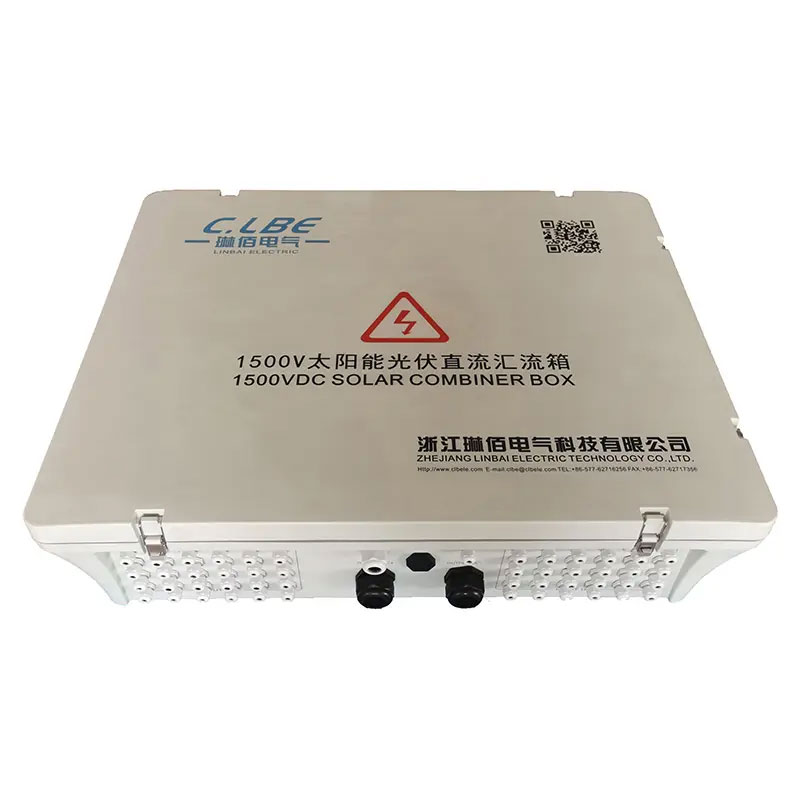

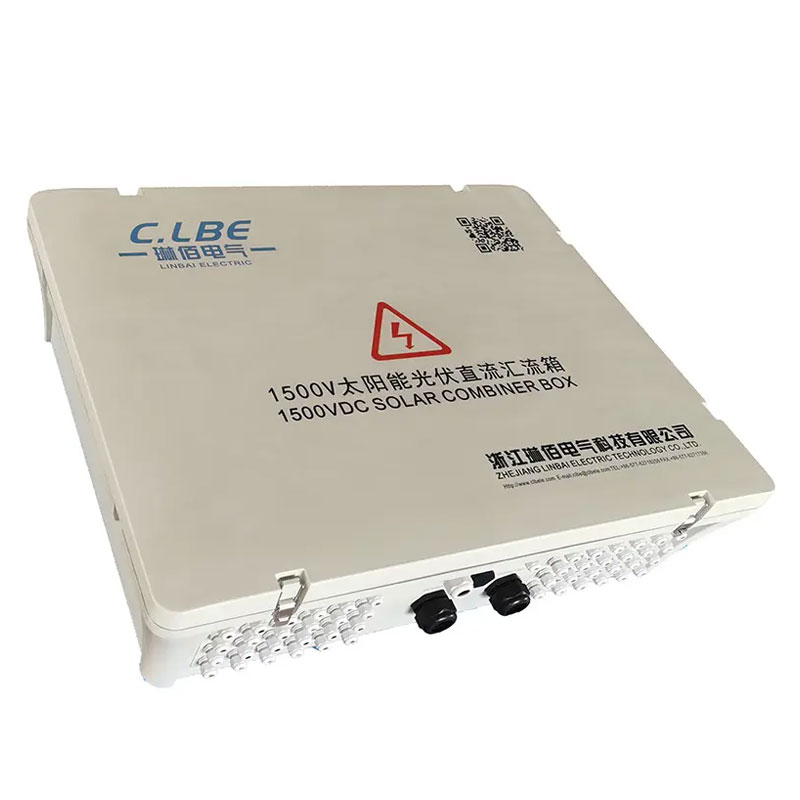

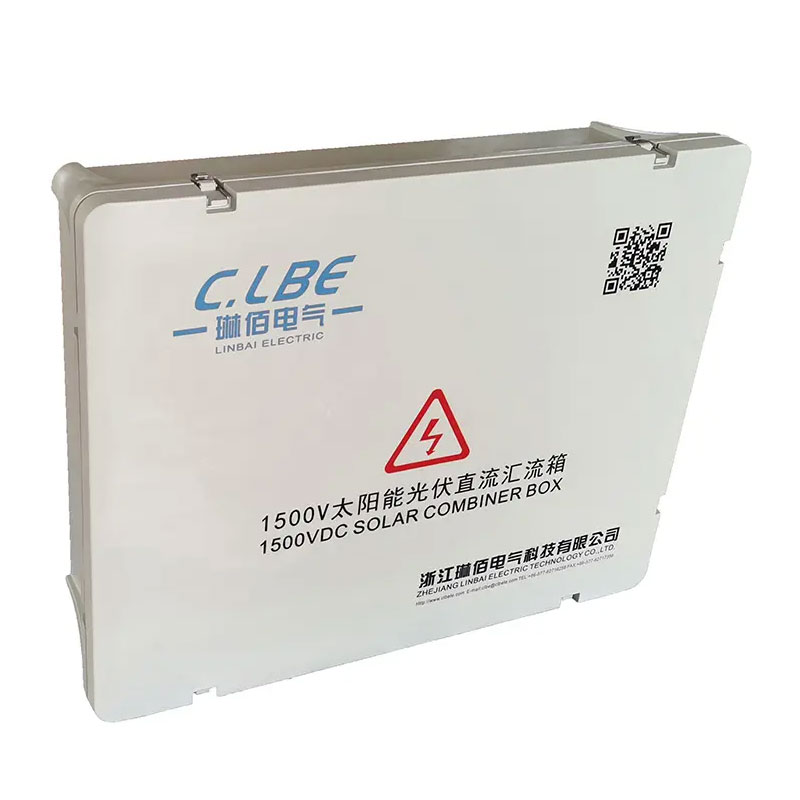

1500V DC Solar Combiner Box 12-24 Ways SMC
Short Description:
This type combiner box can ratch to 1500V DC and it can grade IP67 waterproof, It can be widely used in high pressureenvironment such as solar power station.PV Combiner Box Datesheet Part Number GMS 1500VDC PV Combiner Box Datesheet Technical date S
Detail
This type combiner box can ratch to 1500V DC and it can grade IP67 waterproof, It can be widely used in high pressure environment such as solar power station.
PV Combiner Box Datesheet | |
Part Number | GMS 1500V DC PV Combiner Box Datesheet |
Technical date | |
Strings Number | 8/10/12/14/16/20/24 Strings |
Dimensions(H/W/D)mm | Designed according to configuration requirements |
Materical | FRP |
Install method | Screw |
Degree of protection(according to EN 60529) | IP65 |
Out Color | Off white |
Electrical properties | |
Max. open circuit DC voltage | 1500V DC |
Earthing(DC) | Yes |
Max. DC short circuit per input | 15A DC |
Surge protection Device | 1500C DC 40KA(II) |
Surge protection RS-485 side/RS232(string monitoring) | Optional |
Inputs | |
Number of DC inputs(plus and minus=one put) | Designed according to configuration requirements |
Connection DC input cables (+) to | Fuse holder (0,75mm2-25mm2) |
Connection DC input cables (-) to | Fuse holder (0,75mm2-25mm2) |
Entrance DC input cables thorugh | M16 cable gland, IP65, Ø:5-10mm |
Fuses | With Fuse 15/20/28/30/32A 10*85 or 10*65 |
Location of fuses | Positive and negative inputs |
Outputs | |
Number of DC outputs(plus and minus=one put) | 1 |
Connection DC output cables to | Match by output cable size |
Exit DC output cables through | Match by output cable size |
Max. output circuit breaker current(A) | 8 Wat125A; 10Way160A; 12Way180A; 14Way200A; 16Way225A; 20Way315A; 24Way350A; |
Switch-disconnector with auxiliary contact | MCCB 1500VDC |
String monitoring | |
Outside the cabinet | Optional |
Monitoring of input current, voltage and temperature | Optional |
