HMP1000VDC Combiner Box
Short Description:
Solar Photovoltaic combiner boxes are used in photovoltaic power generation systems, reducing the connection lines between photovoltaic components and inverters. The protection of photovoltaic fuses, circuit breakers and lightning arresters improves reliability and facilitates system maintenance. The user can connect a certain number of photovoltaic modules with the same specifications in series to form a photovoltaic module series according to the DC voltage range input by the inverter, and then connect several series to the photovoltaic array lightning protection combiner box. The output is protected by a circuit breaker, which facilitates the access of the rear inverter.
Detail
Solar Photovoltaic combiner boxes are used in photovoltaic power generation systems, reducing the connection lines between photovoltaic components and inverters. The protection of photovoltaic fuses, circuit breakers and lightning arresters improves reliability and facilitates system maintenance. The user can connect a certain number of photovoltaic modules with the same specifications in series to form a photovoltaic module series according to the DC voltage range input by the inverter, and then connect several series to the photovoltaic array lightning protection combiner box. The output is protected by a circuit breaker, which facilitates the access of the rear inverter.

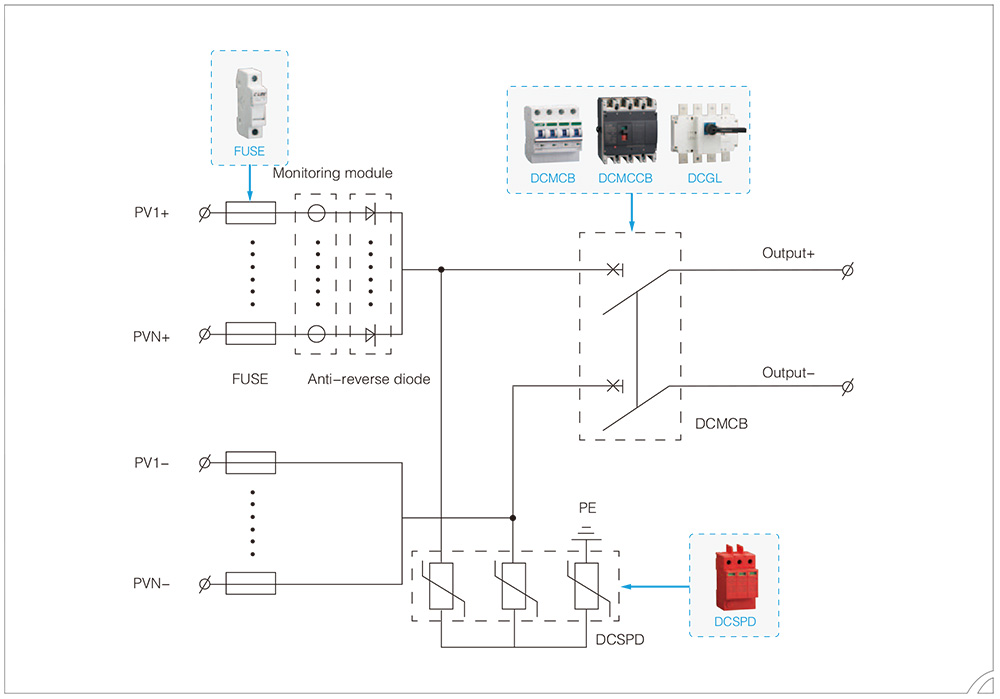

High reliability, with DC fuse, with DC surge protector, with DC circuit breaker or DC load isolation switch voltage up to 1000VDC.
Strong adaptability, protection grade reaches IP65, waterproof, dustproof and UV-proof.
Rigorous high temperature and low temperature test, widely used.
Simple installation, simplified system wiring and convenient wiring.
The box is made of cold rolled steel and other metal materials.
Flexible configuration for monocrystalline silicon solar cell modules, polycrystalline silicon solar cell modules, and thin film solar cell modules. Modified the rated current of photovoltaic fuses, circuit breakers, and load disconnectors.
