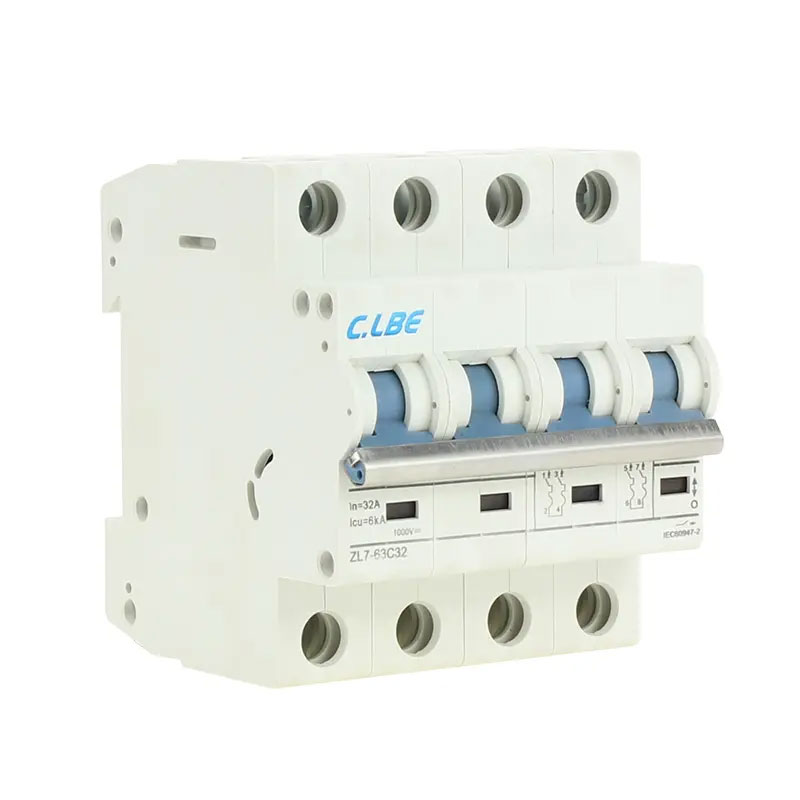

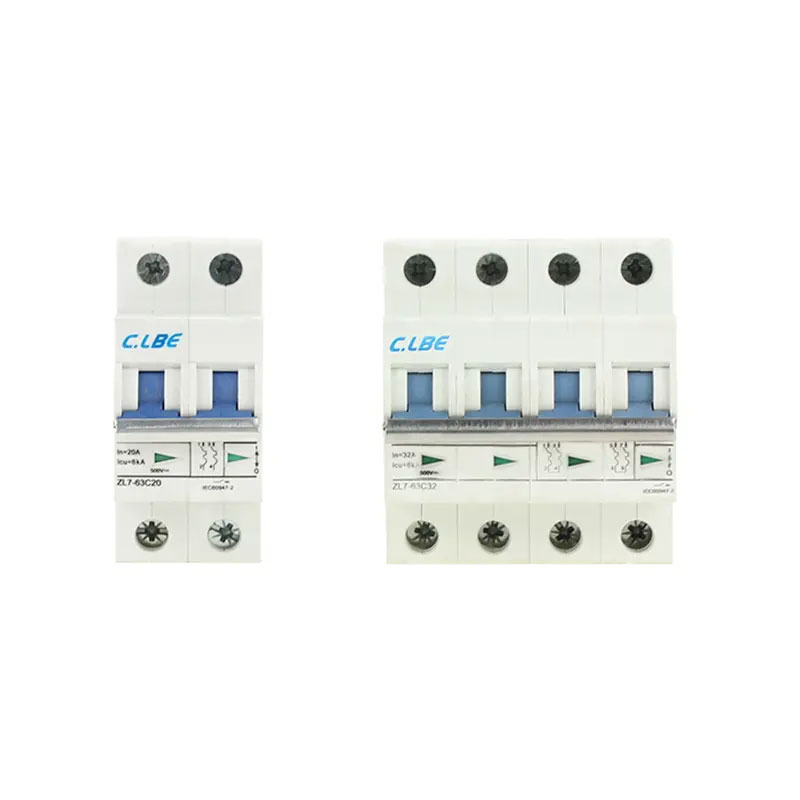

ZL7-63 DC Miniature Circuit Breaker
Short Description:
ZL7-63 DC circuit breaker supplementary protectors are designed to provide overcurrent protection within appliances or electrical equipment,where a branch circuit protection is already provided or not required. Devices are designed for direct current(DC) control circuit applications.
Detail
ZL7-63 DC circuit breaker supplementary protectors are designed to provide overcurrent protection within appliances or electrical equipment,where a branch circuit protection is already provided or not required. Devices are designed for direct current(DC) control circuit applications.
ZL7 Series Circuit Breaker | Zl7-63 | ||||
| Frame degree rated current (A) | 63 | ||||
| Electrical performance | |||||
| Ue Rated operating voltage (V DC) | 1P:DC250V 2P:DC500V 3P:DC800V 4P:DC1000V/1200V | ||||
| Rated Current In (A) | 6-10-16-20-25-32-40-50-63 | ||||
| Rated insulation voltage Ui (V DC) | 2P:800V 4P:1200V | ||||
| Ated impact voltage Uimp (kV) | 4 | ||||
| Ultimate breaking capacity Icu (kA) | 6 | ||||
| Run breaking capacity Ics (%Icu) | 75% | ||||
| Curve type | C | ||||
| Trip type | Thermal-magnetic | ||||
| MECHANICAL | Actual average value | 20000 | |||
| Standard value | 8500 | ||||
| ELECTRIC | Actual average value | 2500 | |||
| Standard value | 1200 | ||||
| Control and indication | |||||
| Shunt release (SHT) | option | ||||
| Undervoltage release (UNT) | |||||
| Auxiliary contact (AX) | |||||
| Alarm contact (AL) | |||||
| Connection and installation | |||||
| Wiring capacity (mm²) | In≤32A, 1~25mm², I≥40A, 10~35mm² | ||||
| Ambient temperature (℃) | -20~70 | ||||
| Altitude | ≤2000 | ||||
| Relative humidity | ≤95% | ||||
| Pollution Level | 3 | ||||
| Installation Environment | No obvious shock and vibration | ||||
| Installation category | Class III | ||||
| Installation | DIN Standard rail | ||||
| Dimensions(W*H*Deep) | W | 18 | 36 | 54 | 72 |
| H | 80 | 80 | 80 | 80 | |
| Deep | 71 | 71 | 71 | 71 | |
| Weight (kg) | 0.12 | 0.24 | 0.36 | 0.48 | |
