CLBDF-32LB 10*85 DC FUSE 1500V
Short Description:
CLBDF-32LB 10*85 DC FUSE 1500V This series of fuse is suitable for solar photovolaic power generation system, rated volage to1500V, rated current to 630A, used in photovollaic power generation equipment as a photovoltaic module string and photovoltaic array for over current protection, and photovoltaic panels, and batteries connected in senes and parallel, to charge variable flow system for short circuit breaking protection, in photovolaic station and inverter rectifier system for short-circuit breaking protection, as wellas photovoltlaic power generation system inrush current and short circuit faut vollage for quick break protection, rated breaking capacity to 10-50kA products confirms to IEC60629.1 and 60629.6.
Detail
CLBDF-32LB 10*85 DC FUSE 1500V This series of fuse is suitable for solar photovolaic power generation system, rated volage to1500V, rated current to 630A, used in photovollaic power generation equipment as a photovoltaic module string and photovoltaic array for over current protection, and photovoltaic panels, and batteries connected in senes and parallel, to charge variable flow system for short circuit breaking protection, in photovolaic station and inverter rectifier system for short-circuit breaking protection, as wellas photovoltlaic power generation system inrush current and short circuit faut vollage for quick break protection, rated breaking capacity to 10-50kA products confirms to IEC60629.1 and 60629.6.
Ambient Temperature:-40℃-+90 CEquipment instalation heightless than 2000m (lf exceeding this value, please specily the requirements, and company wildesign according to the requirements) Relative air humidity: less than 90%
gPV means al range DC Fuse used for breaking protection in solar photovollaic power generation system
Fuse link is made of pure silver(or made of silver strings), welding low tin and encapsulated in the melt tube made of high-strength porcelain, the use tube filed with high pure quartz sand chemicaly processed as the arc medium, fuse body is connected with contacting terminals by spot welding Fuse base suppressed by the plastic casing fited with contacts and contains the fusion pieces, the connection made by riveting as the support of the appropriate size fuse body parts. This series fuse has a compact and convenient device, use security, beautful appearance, etc.
CLBDF-32LB 2A-32A 1500VDC Breaking Capacity:33(20) kA Standard: GB/T 13539.6 IEC60269-6

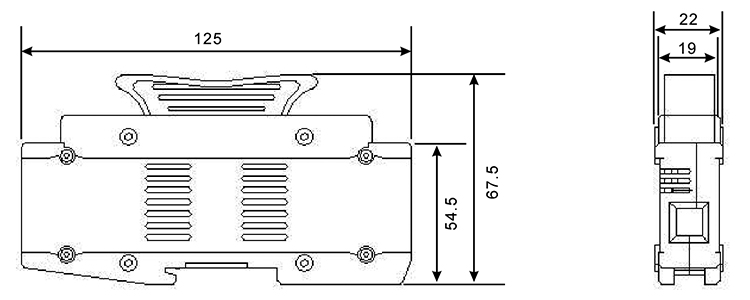

Dimensions-size
Specification
Model | Rated current(A) | I² T(A²S) | |
Pre-arcing | Total | ||
CLBDF-32PV(CLBDPV-32L) | 2 | 4 | 8 |
CLBDF-32PV(CLBDPV-32L) | 3 | 6 | 11 |
CLBDF-32PV(CLBDPV-32L) | 4 | 8 | 14 |
CLBDF-32OV(CLBDPV-32L) | 5 | 11 | 22 |
CLBDF-32PV(CLBDPV-32L) | 6 | 15 | 30 |
CLBDF-32PV(CLBDPV-32L) | 8 | 9 | 35 |
CLBDF-32PV(CLBDPV-32L) | 10 | 10 | 98 |
CLBDF-32PV(CLBDPV-32L) | 12 | 12 | 120 |
CLBDF-32PV(CLBDPV-32L) | 15 | 14 | 170 |
CLBDF-32PV(CLBDPV-32L) | 20 | 34 | 400 |
CLBDF-32PV(CLBDPV-32L) | 25 | 65 | 550 |
CLBDF-32PV(CLBDPV-32L) | 30 | 85 | 680 |
CLBDF-32PV(CLBDPV-32L) | 32 | 90 | 720 |

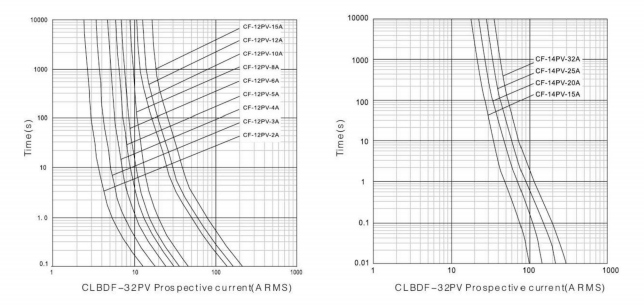

Time Current Curve
